Village Collection garage door construction

Technical Specifications

Features

Sizes

  • Standard widths, in 1" increments: from 8' to 20' for Vantage and Regal N24 constructions; from 8' to 18' for Regal N25 construction.
  • Heights from 6'6" to 8’, in 3" increments

Please contact us for more details on oversized doors available.

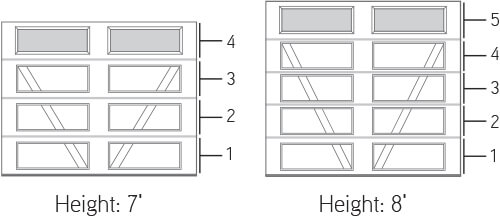

8’ high door layouts

The 8’ high doors are always built with 5 sections

Village Construction - Heights

Construction specifications, available inlay layouts and colours

Village Collection doors are available in three types of construction which correspond to the Vantage, Regal N24 and Regal N25 doors.

  Vantage1 Regal N24 Regal N25

Construction

Triple-layer
Polystyrene
Steel

Single layer OR
Non-insulated
Heavy duty steel

Single layer OR
Non-insulated
Steel

Inlays Flat Base



Inlays Plank Base

Colours
White colour for steel Garaga garage doors

White

White

White

Sahara colour for steel Garaga garage doors

Sahara

Sahara

Sahara

Almond colour for steel Garaga garage doors

Almond

Almond

Almond

Sandstone colour for steel Garaga garage doors

Sandstone

Sandstone

Sandstone

Terrastone colour for steel Garaga garage doors

Terrastone

Terrastone


Brown colour for steel Garaga garage doors

Brown

Brown


Dark Walnut Faux Wood colour for steel Garaga garage doors

Dark Walnut, Faux Wood

Dark Walnut, Faux Wood


Black Ice colour for steel Garaga garage doors

Black Ice

Black Ice


Charcoal colour for steel Garaga garage doors

Charcoal

Charcoal


Weathered Grey, Faux Wood colour for steel Garaga garage doors

Weathered Grey, Faux Wood

Weathered Grey, Faux Wood



Construction

Vantage1

Triple-layer
Polystyrene
Steel

Regal N24

Single layer OR
Non-insulated
Heavy duty steel

Regal N25

Single layer OR
Non-insulated
Steel

Inlays Flat Base

Vantage1

Regal N24

Regal N25



Inlays Plank Base

Vantage1

Regal N24

Regal N25

Colours

Vantage1

White, Sahara, Almond, Sandstone, Terrastone, Brown, Dark Walnut Faux Wood, Black Ice, Charcoal, Weathered Grey Faux Wood

Regal N24

White, Sahara, Almond, Sandstone, Terrastone, Brown, Dark Walnut Faux Wood, Black Ice, Charcoal, Weathered Grey Faux Wood

Regal N25

White, Sahara, Almond, Sandstone

1The exterior surface of the Vantage has a light woodgrain finish with a stucco finish for the interior surface. Regardless of the color chosen for the exterior, the interior side of the door is always White (door, window frames, and inserts).

LAYOUTS (the configurations shown are in 8 'of height)

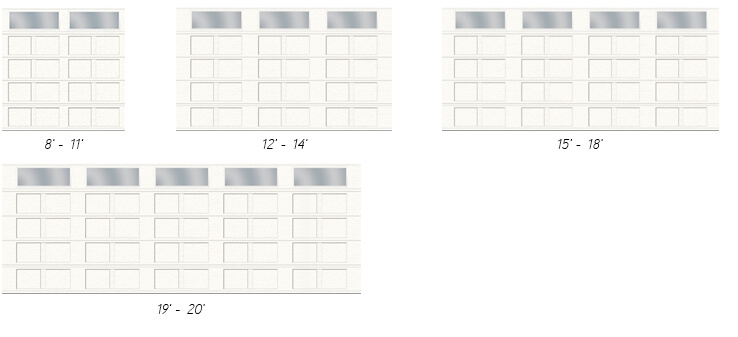

I-1 Layout, Flat Base (Vantage, Regal N24)

Layouts I-1 Layout, Flat Base

I-1 Layout, Flat Base (Vantage, Regal N24)

I-1 Layout, Flat - 2 bays

8' to 11'

I-1 Layout, Flat - 3 bays

12' to 14'

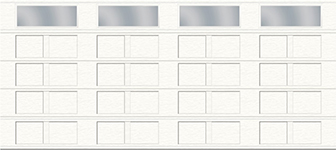

I-1 Layout, Flat - 4 bays

15' to 18'

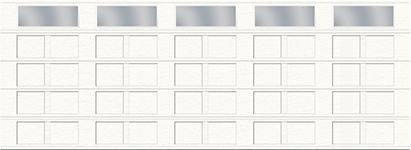

I-1 Layout, Flat - 5 bays

19' to 20'

I-1 Layout, Plank Base (Vantage, Regal N24, Regal N25)

Layouts I-1 Layout, Plank Base

I-1 Layout, Plank Base (Vantage, Regal N24, Regal N25)

I-1 Layout, Plank Base - 2 bays

8' to 11'

I-1 Layout, Plank Base - 3 bays

12' to 14'

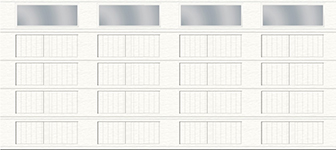

I-1 Layout, Plank Base - 4 bays

15' to 18'

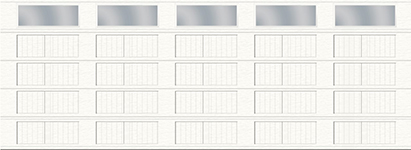

I-1 Layout, Plank Base - 5 bays

19' to 20'

I-1 Layout, 2-Slat Base (Vantage, Regal N24)

Layouts I-1 Layout, 2-Slat Base

I-1 Layout, 2-Slat Base (Vantage, Regal N24)

I-1 Layout, 2-Slat Base - 2 bays

8' to 11'

I-1 Layout, 2-Slat Base - 3 bays

12' to 14'

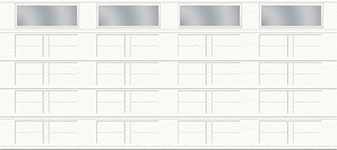

I-1 Layout, 2-Slat Base - 4 bays

15' to 18'

I-1 Layout, 2-Slat Base - 5 bays

19' to 20'

I-1 Layout, 4-Slat Base (Vantage, Regal N24)

Layouts I-1 Layout, 4-Slat Base

I-1 Layout, 4-Slat Base (Vantage, Regal N24)

I-1 Layout, 4-Slat Base - 2 bays

8' to 11'

I-1 Layout, 4-Slat Base - 3 bays

12' to 14'

I-1 Layout, 4-Slat Base - 4 bays

15' to 18'

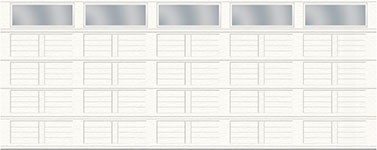

I-1 Layout, 4-Slat Base - 5 bays

19' to 20'

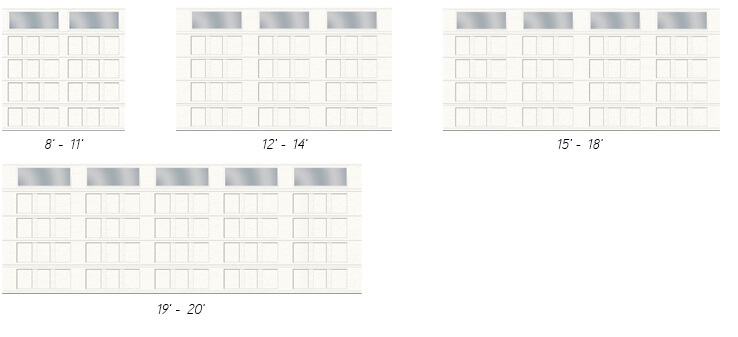

I-2 Layout, Flat Base (Vantage, Regal N24)

Layouts I-2 Layout, Flat Base

I-2 Layout, Flat Base (Vantage, Regal N24)

I-2 Layout, Flat - 2 bays

8' to 11'

I-2 Layout, Flat - 3 bays

12' to 14'

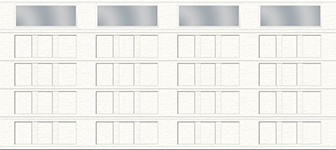

I-2 Layout, Flat - 4 bays

15' to 18'

I-2 Layout, Flat - 5 bays

19' to 20'

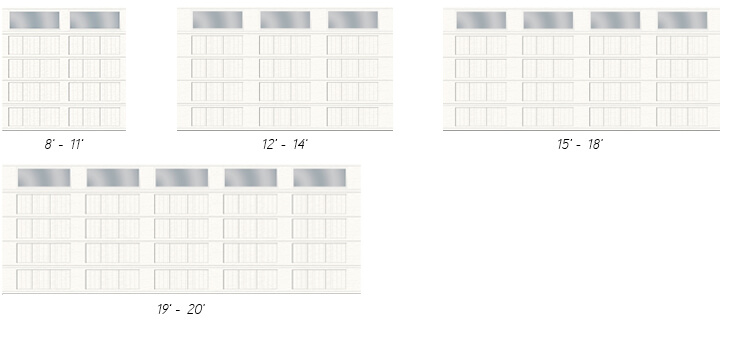

I-2 Layout, Plank Base (Vantage, Regal N24, Regal N25)

Layouts I-2 Layout, Plank Base

I-2 Layout, Plank Base (Vantage, Regal N24, Regal N25)

I-2 Layout, Plank Base - 2 bays

8' to 11'

I-2 Layout, Plank Base - 3 bays

12' to 14'

I-2 Layout, Plank Base - 4 bays

15' to 18'

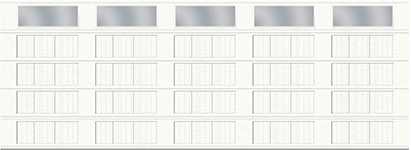

I-2 Layout, Plank Base - 5 bays

19' to 20'

I-2 Layout, 2-Slat Base (Vantage, Regal N24, Regal N25)

Layouts I-2 Layout, 2-Slat Base

I-2 Layout, 2-Slat Base (Vantage, Regal N24)

I-2 Layout, 2-Slat Base - 2 bays

8' to 11'

I-2 Layout, 2-Slat Base - 3 bays

12' to 14'

I-2 Layout, 2-Slat Base - 4 bays

15' to 18'

I-2 Layout, 2-Slat Base - 5 bays

19' to 20'

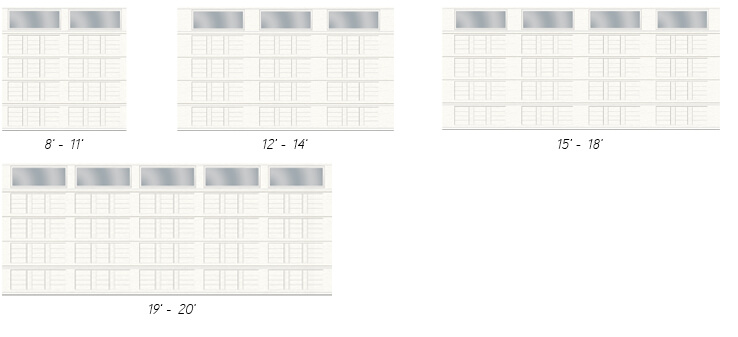

I-2 Layout, 4-Slat Base (Vantage, Regal N24, Regal N25)

Layouts I-2 Layout, 4-Slat Base

I-2 Layout, 4-Slat Base (Vantage, Regal N24)

I-2 Layout, 4-Slat Base - 2 bays

8' to 11'

I-2 Layout, 4-Slat Base - 3 bays

12' to 14'

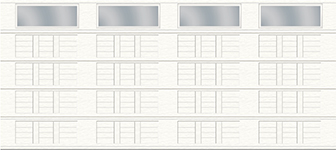

I-2 Layout, 4-Slat Base - 4 bays

15' to 18'

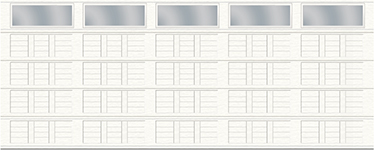

I-2 Layout, 4-Slat Base - 5 bays

19' to 20'

X Layout, Flat Base (Vantage, Regal N24)

Layouts X Layout, Flat Base

X Layout, Flat Base (Vantage, Regal N24)

X Layout, Flat - 2 bays

8' to 11'

X Layout, Flat - 3 bays

12' to 14'

X Layout, Flat - 4 bays

15' to 18'

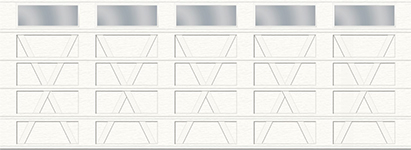

X Layout, Flat - 5 bays

19' to 20'

X Layout, Plank Base (Vantage, Regal N24, Regal N25)

Layouts X Layout, Plank Base

X Layout, Plank Base (Vantage, Regal N24, Regal N25)

X Layout, Plank Base - 2 bays

8' to 11'

X Layout, Plank Base - 3 bays

12' to 14'

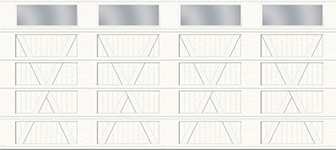

X Layout, Plank Base - 4 bays

15' to 18'

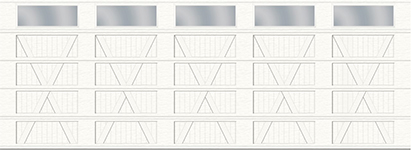

X Layout, Plank Base - 5 bays

19' to 20'

X Layout, 2-Slat Base (Vantage, Regal N24)

Layouts X Layout, 2-Slat Base

X Layout, 2-Slat Base (Vantage, Regal N24)

X Layout, 2-Slat Base - 2 bays

8' to 11'

X Layout, 2-Slat Base - 3 bays

12' to 14'

X Layout, 2-Slat Base - 4 bays

15' to 18'

X Layout, 2-Slat Base - 5 bays

19' to 20'

X Layout, 4-Slat Base (Vantage, Regal N24)

Layouts X Layout, 4-Slat Base

X Layout, 4-Slat Base (Vantage, Regal N24)

X Layout, 4-Slat Base - 2 bays

8' to 11'

X Layout, 4-Slat Base - 3 bays

12' to 14'

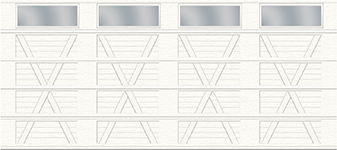

X Layout, 4-Slat Base - 4 bays

15' to 18'

X Layout, 4-Slat Base - 5 bays

19' to 20'

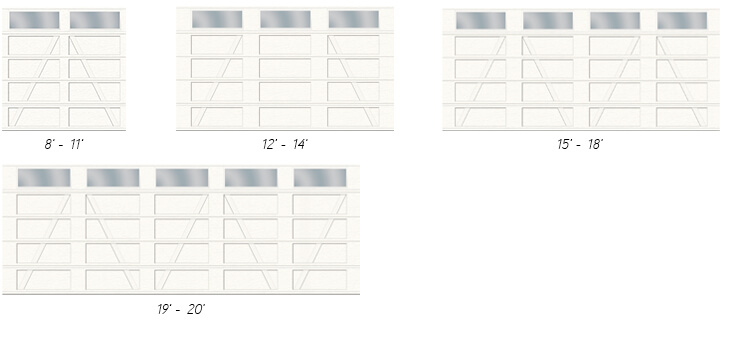

A Layout, Flat Base (Vantage, Regal N24)

Layouts A Layout, Flat Base

A Layout, Flat Base (Vantage, Regal N24)

A Layout, Flat Base - 2 bays

8' to 11'

A Layout, Flat Base - 3 bays

12' to 14'

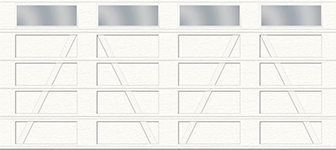

A Layout, Flat Base - 4 bays

15' to 18'

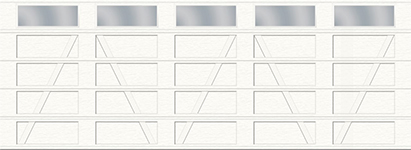

A Layout, Flat Base - 5 bays

19' to 20'

A Layout, Plank Base (Vantage, Regal N24, Regal N25)

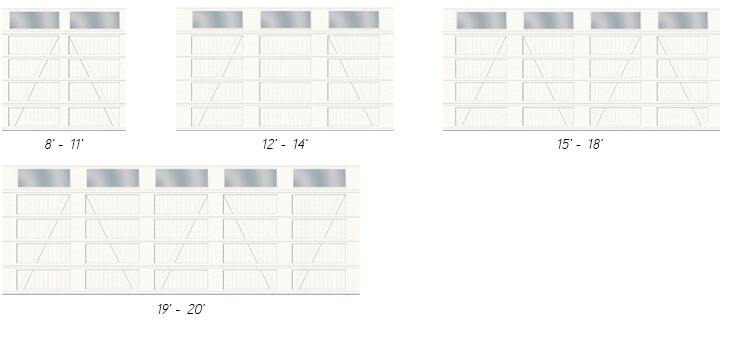

Layouts A Layout, Plank Base

A Layout, Plank Base (Vantage, Regal N24, Regal N25

A Layout, Plank Base - 2 bays

8' to 11'

A Layout, Plank Base - 3 bays

12' to 14'

A Layout, Plank Base - 4 bays

15' to 18'

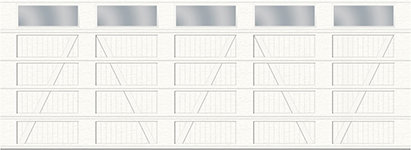

A Layout, Plank Base - 5 bays

19' to 20'

A Layout, 2-Slat Base (Vantage, Regal N24)

Layouts A Layout, 2-Slat Base

A Layout, 2-Slat Base (Vantage, Regal N24)

A Layout, 2-Slat Base - 2 bays

8' to 11'

A Layout, 2-Slat Base - 3 bays

12' to 14'

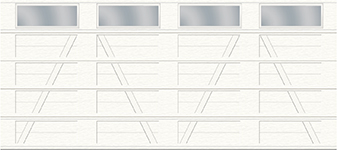

A Layout, 2-Slat Base - 4 bays

15' to 18'

A Layout, 2-Slat Base - 5 bays

19' to 20'

A Layout, 4-Slat Base (Vantage, Regal N24)

Layouts A Layout, 4-Slat Base

A Layout, 4-Slat Base (Vantage, Regal N24)

A Layout, 4-Slat Base - 2 bays

8' to 11'

A Layout, 4-Slat Base - 3 bays

12' to 14'

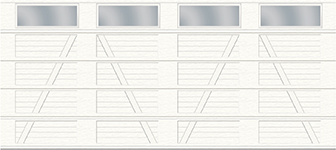

A Layout, 4-Slat Base - 4 bays

15' to 18'

A Layout, 4-Slat Base - 5 bays

19' to 20'

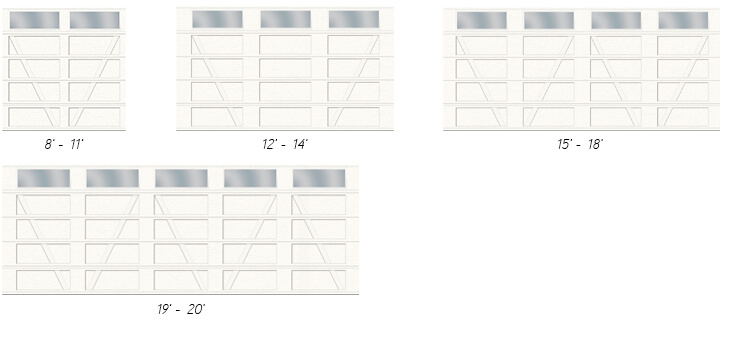

V Layout, Flat Base (Vantage, Regal N24)

Layouts V Layout, Flat Base

V Layout, Flat Base (Vantage, Regal N24)

V Layout, Flat - 2 bays

8' to 11'

V Layout, Flat - 3 bays

12' to 14'

V Layout, Flat - 4 bays

15' to 18'

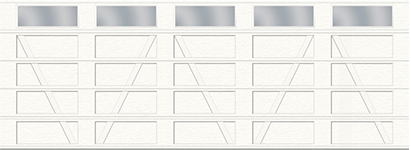

V Layout, Flat - 5 bays

19' to 20'

V Layout, Plank Base (Vantage, Regal N24, Regal N25)

Layouts V Layout, Plank Base

V Layout, Plank Base (Vantage, Regal N24, Regal N25)

V Layout, Plank Base - 2 bays

8' to 11'

V Layout, Plank Base - 3 bays

12' to 14'

V Layout, Plank Base - 4 bays

15' to 18'

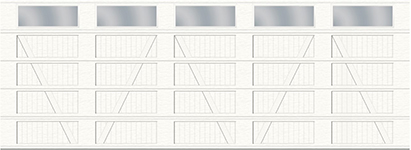

V Layout, Plank Base - 5 bays

19' to 20'

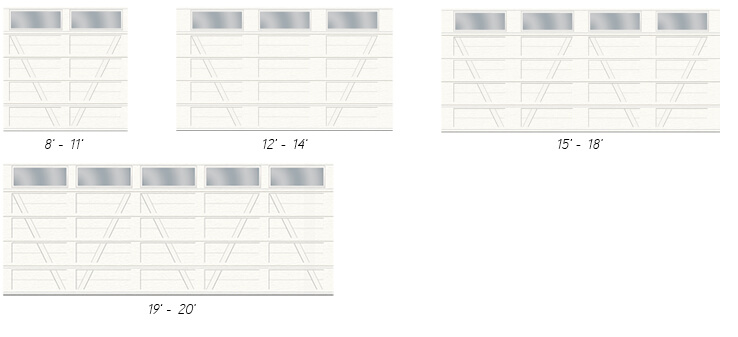

V Layout, 2-Slat Base (Vantage, Regal N24)

Layouts V Layout, 2-Slat Base

V Layout, 2-Slat Base (Vantage, Regal N24)

V Layout, 2-Slat Base - 2 bays

8' to 11'

V Layout, 2-Slat Base - 3 bays

12' to 14'

V Layout, 2-Slat Base - 4 bays

15' to 18'

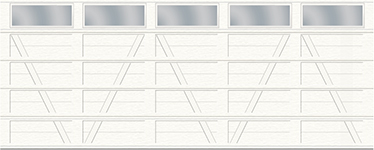

V Layout, 2-Slat Base - 5 bays

19' to 20'

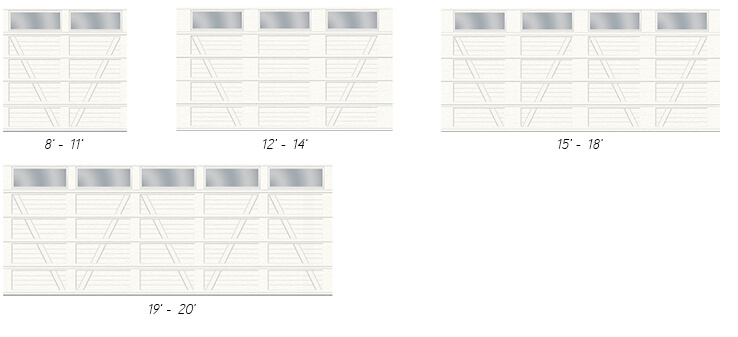

V Layout, 4-Slat Base (Vantage, Regal N24)

Layouts V Layout, 4-Slat Base

V Layout, 4-Slat Base (Vantage, Regal N24)

V Layout, 2-Slat Base - 2 bays

8' to 11'

V Layout, 4-Slat Base - 3 bays

12' to 14'

V Layout, 4-Slat Base - 4 bays

15' to 18'

V Layout, 4-Slat Base - 5 bays

19' to 20'

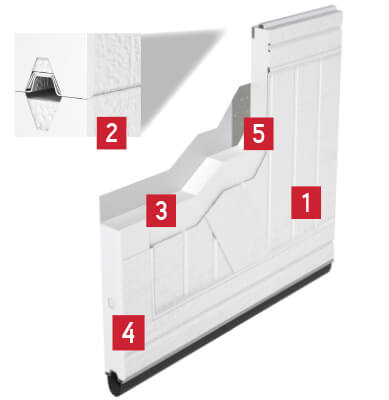

Vantage Construction

3 layers, Polystyrene

3 layers | Polystyrene
(Steel + Polystyrene + Steel)

  1
26-gauge pre-painted galvanized steel for high durability
  2
2” tongue-and-groove meeting rail to provide a weathertight seal between sections, and rails are hemmed the entire length of the section for added strength and safety
  3
Polystyrene insulation pressure bonded between two layers of steel for energy efficiency
  4
20-gauge white baked-on paint finish end stiles for a nice clean look
  5
Full-length reinforcing plates to solidly attach hinges and struts

Construction Vantage - Triple-layer: steel + insulation + steel

Regal N24 & Regal N25 Construction

2 layers, Polystyrene

2 layers (Steel + Polystyrene)

OR

Non-insulated

Non-insulated

  1
3 options of outside layer: steel, heavy duty steel or commercial grade steel for high durability
  2
2” tongue-and-groove meeting rail to provide a weathertight seal between sections, and rails are hemmed the entire length of the section for added strength and safety
  3
20-gauge galvanized end and center stiles to increase strength and durability
  4
Polystyrene vinyl-backed insulation available as an option​

Construction Regal - Single-layer: steel OR Double-layer: steel + insulation

Mid-America CSX garage door models with A, B, D and E layouts are now included in the Village Collection.
